Drum Mower

Hisarlar brand drum mowers provide small or medium acreage landowners and hay producers with significantly improved capacity and productivity thanks to the quick and smooth cutting system.

PDF FILE



Category: Tag:

Description

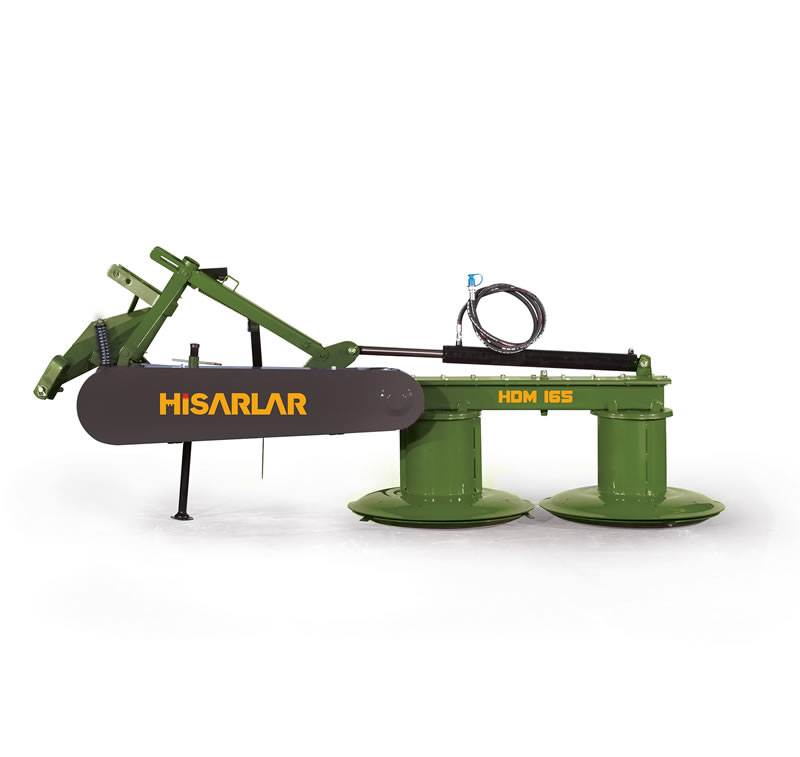

MODEL HDM 165 HDMHP 165 HDMDHP 165
Machine Type Fixed Chais Single Hydraulic Piston Double Hydraulic Piston
Working width (mm) 1650 mm 1650 mm 1650 mm
Number of Drum (pcs) 2 2 2
Number of Blades (pcs) 6 6 6
Working Speed (km/h) 8-10 km/h 8-10 km/h 8-10 km/h
Working Capacity (ha/h) 1,5 ha/h 1,5 ha/h 1,5 ha/h
PTO Speed (Rpm) 540 rpm 540 rpm 540 rpm
Tractor HP Requirement (HP) 40 HP 40 HP 40 HP
Lenght (mm) 2750 mm 2750 mm 2750 mm
Weight (mm) 990 mm 990 mm 990 mm
Height (mm) 1100 mm 1100 mm 1100 mm
Ağırlık (kg) 400 kg 450 kg 450 kg
Technical Specifications

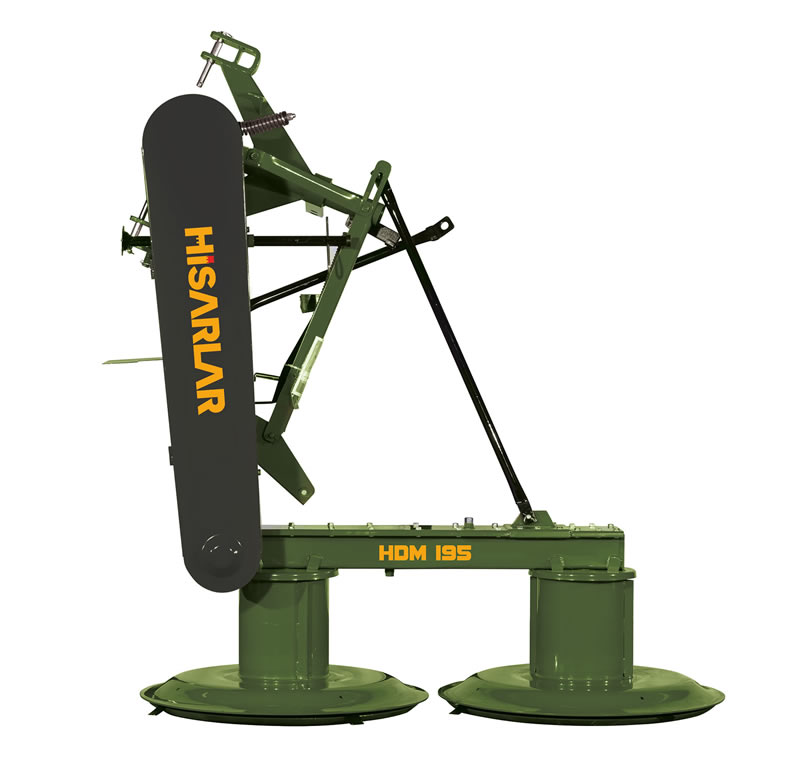

MODEL HDM 195 HDMHP 195 HDMDHP 195
Machine Type Fixed Chasis Single Hydraulic Piston Double Hydraulic Piston
Working Width (mm) 1950 mm 1950 mm 1650 mm
Number of Drum (pcs) 2 2 2
Number of Blades (pcs) 8 8 8
Working Speed (km/h) 8-10 km/h 8-10 km/h 8-10 km/h
Working Capacity (ha/h) 1,8 ha/h 1,8 ha/h 1,8 ha/h
PTO Speed (Rpm) 540 rpm 540 rpm 540 rpm
Tractor HP Requirement (HP) 60 HP 60 HP 60 HP
Lenght (mm) 3200 mm 3200 mm 3200 mm
Width (mm) 1100 mm 1100 mm 1100 mm
Height (mm) 1100 mm 1100 mm 1100 mm
Weight (kg) 400 kg 550 kg 550 kg
